Templates & Directions

The following bench templates and assembly directions are provided for product guidance.





Templates

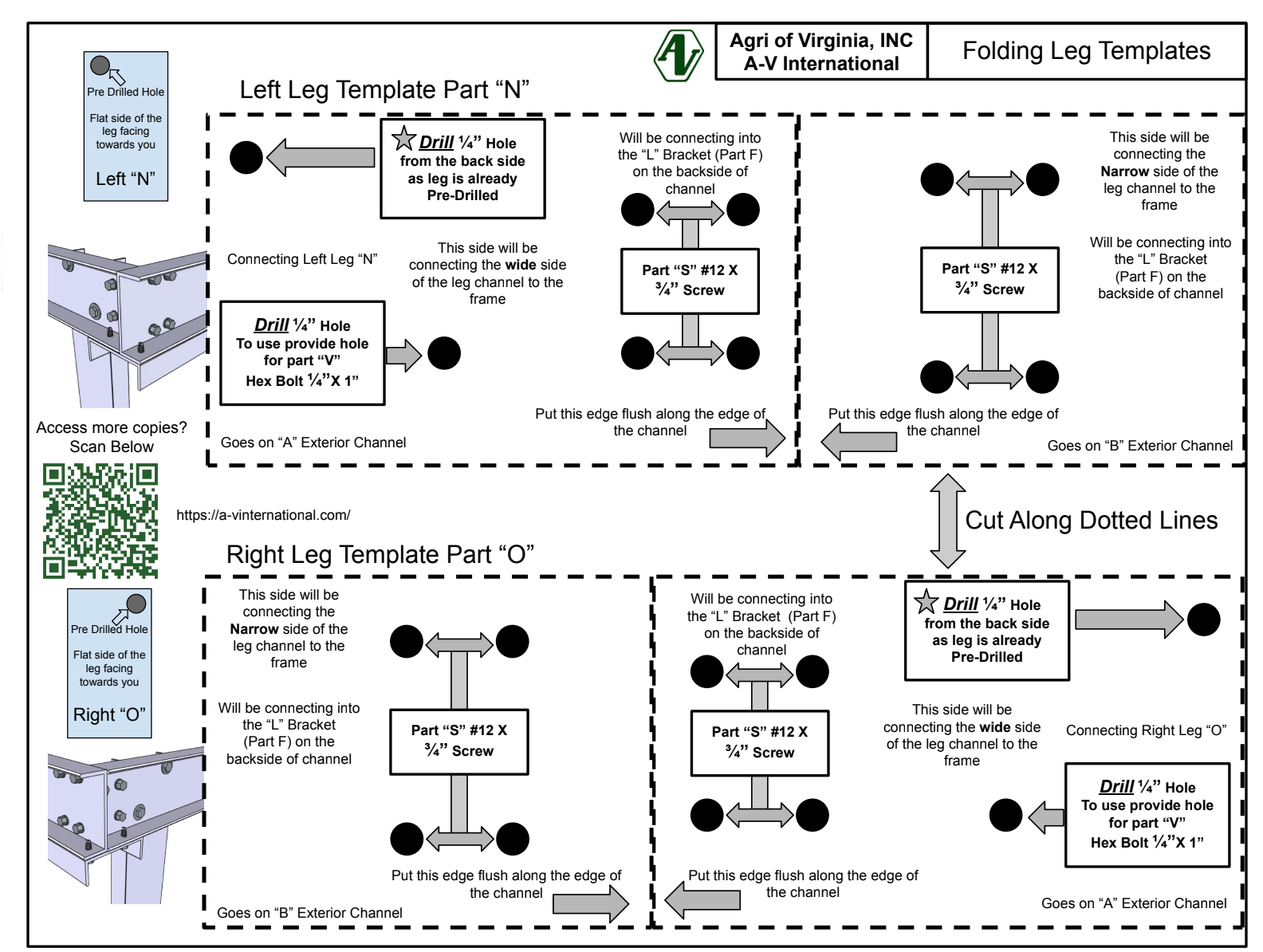

Folding Leg Template

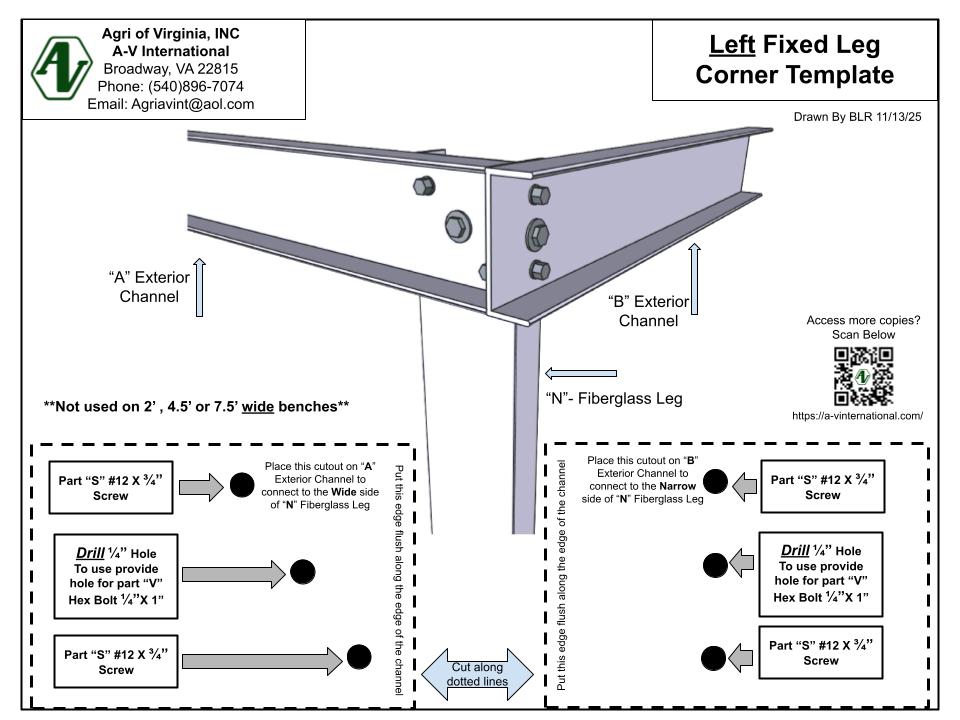

Left Leg Fixed Corner Template

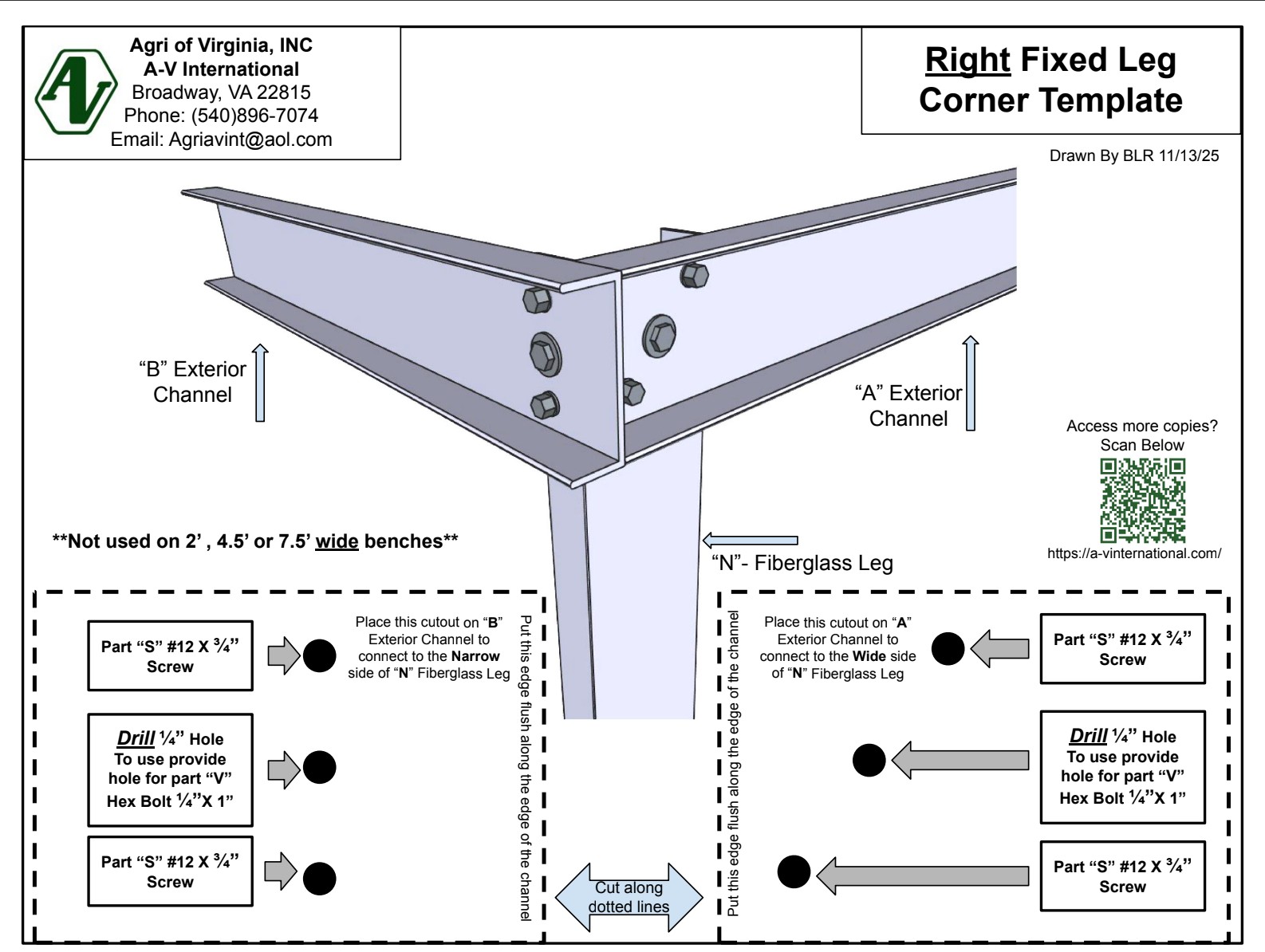

Right Leg Fixed Corner Template

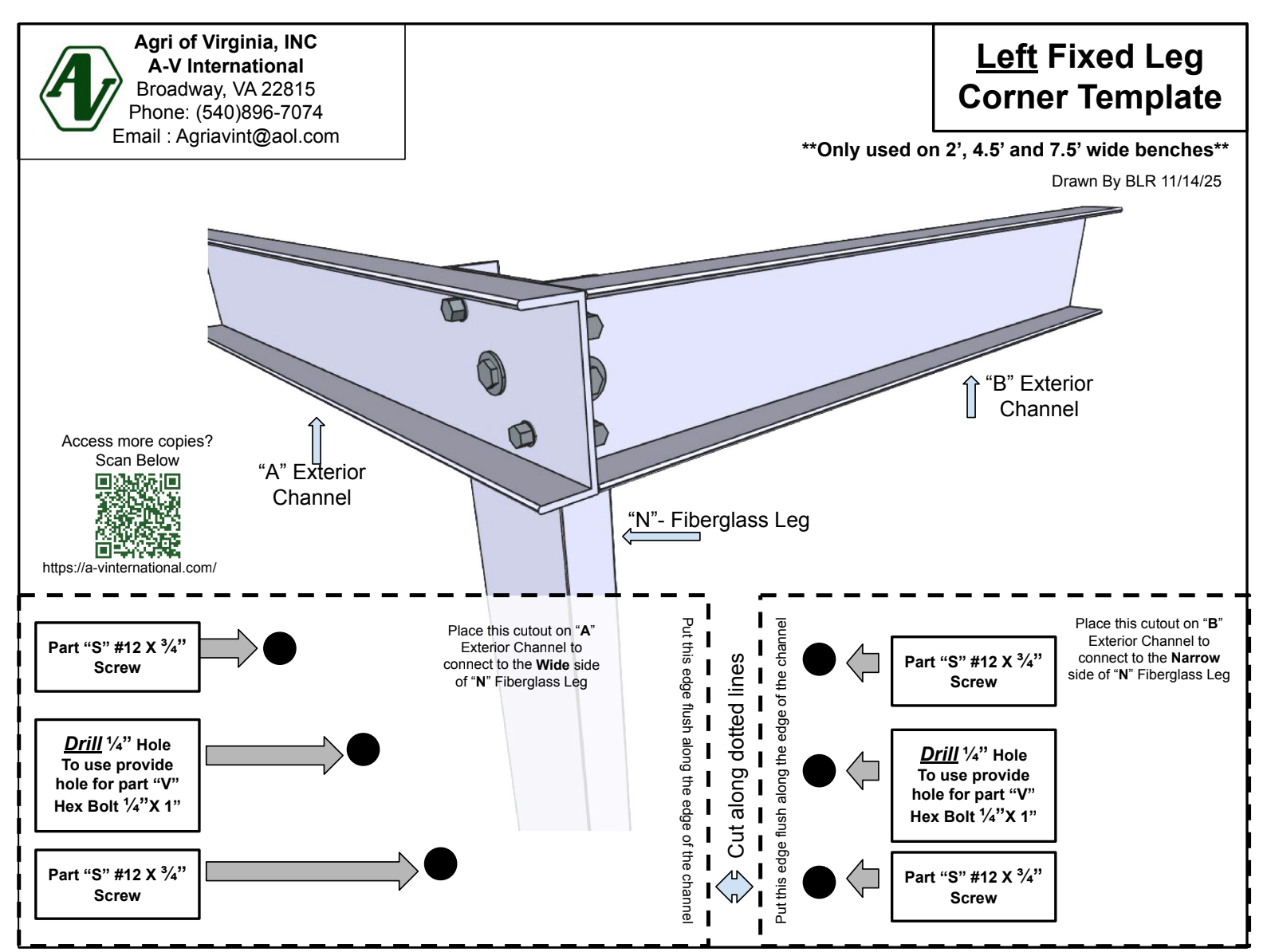

Left Leg 2', 4.5', 7.5' Template

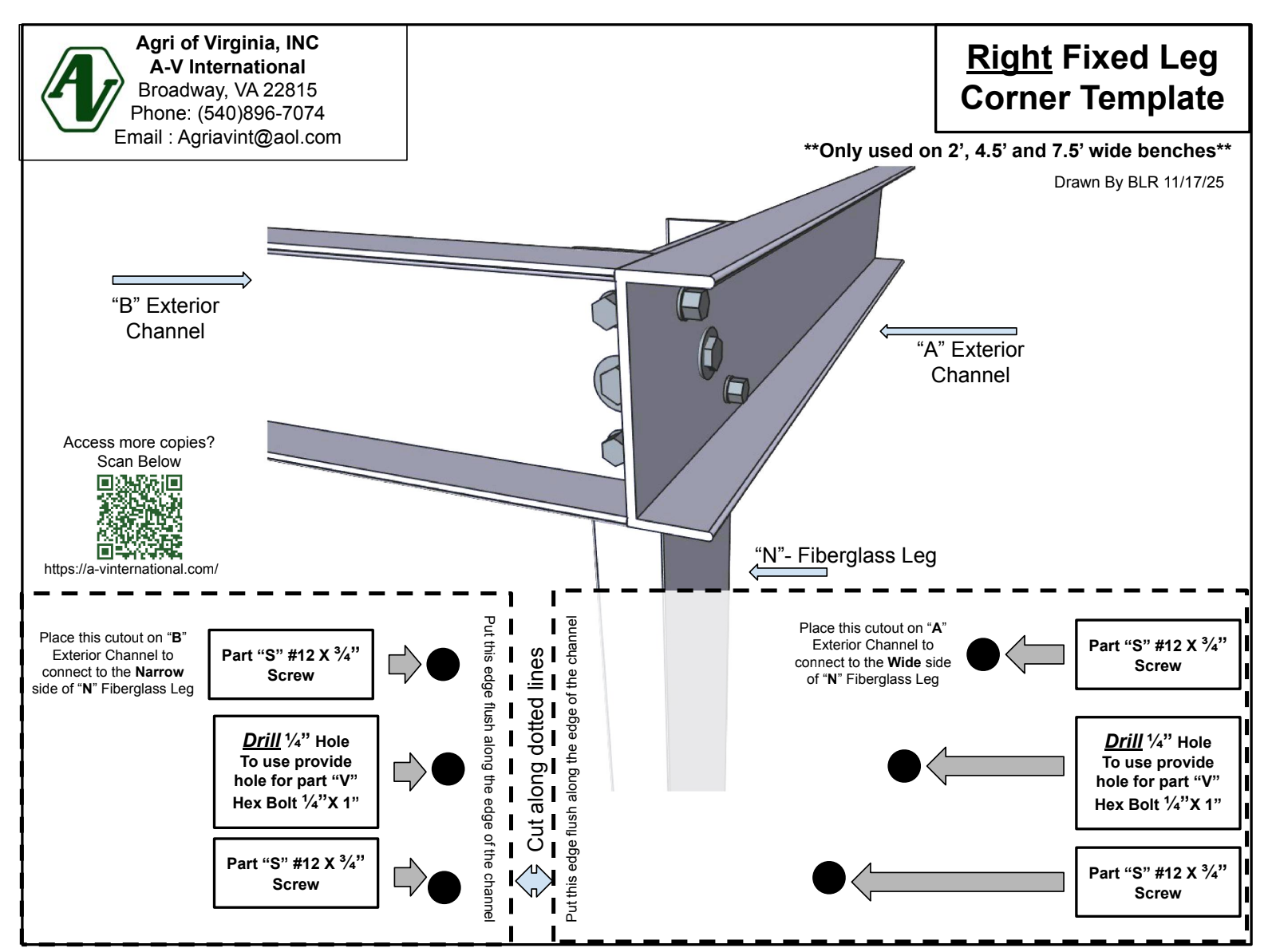

Right Leg 2', 4.5', 7.5' Template

Directions

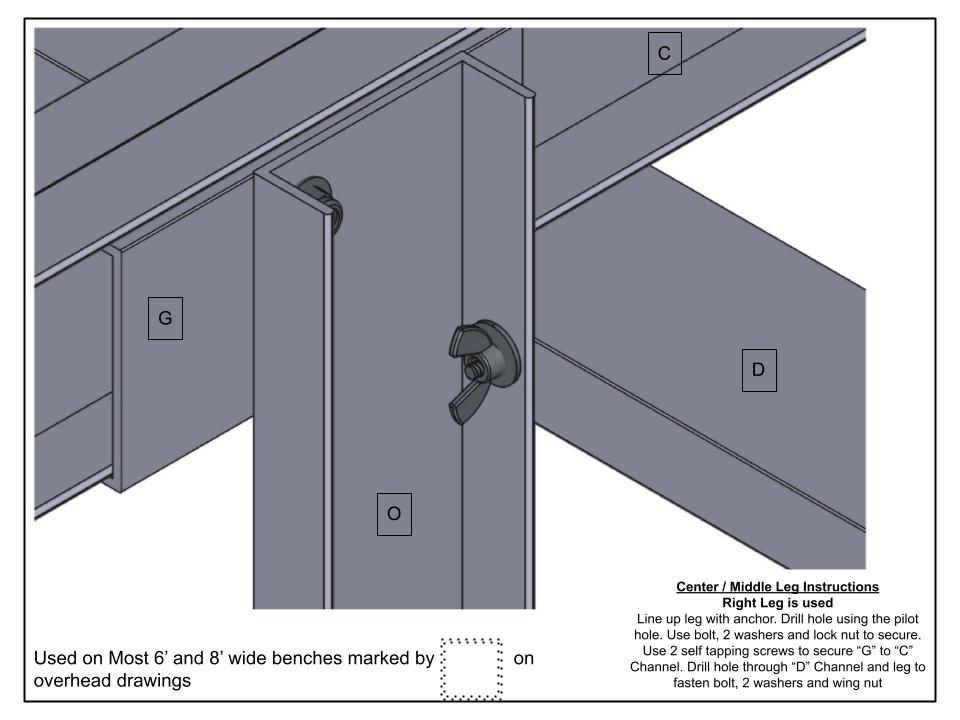

Detail D

Double Center Support Ste

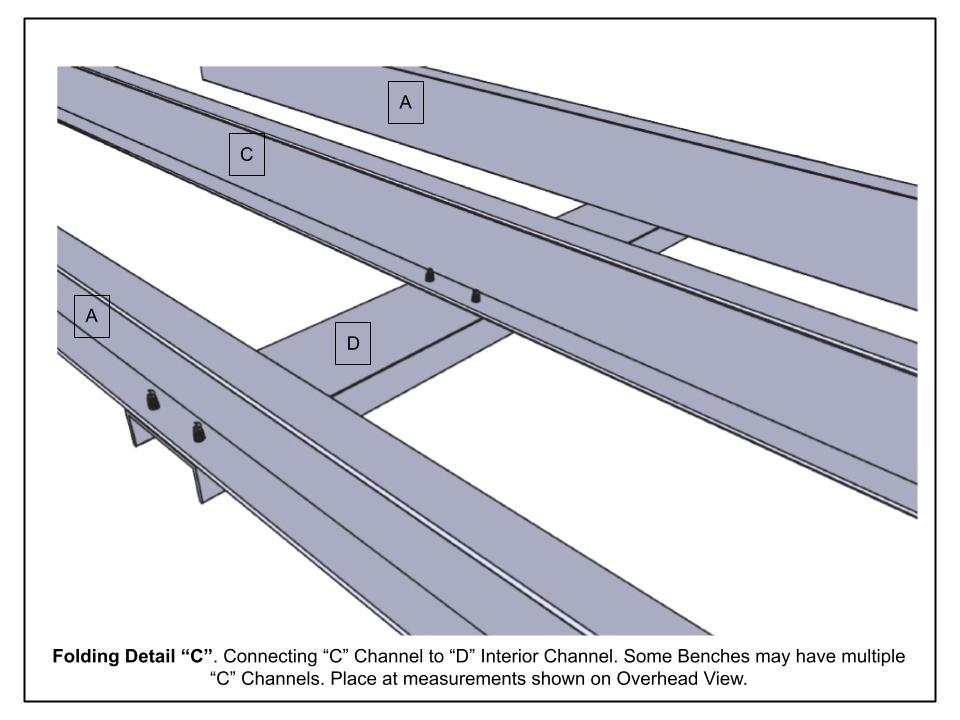

Detail C Center Rail

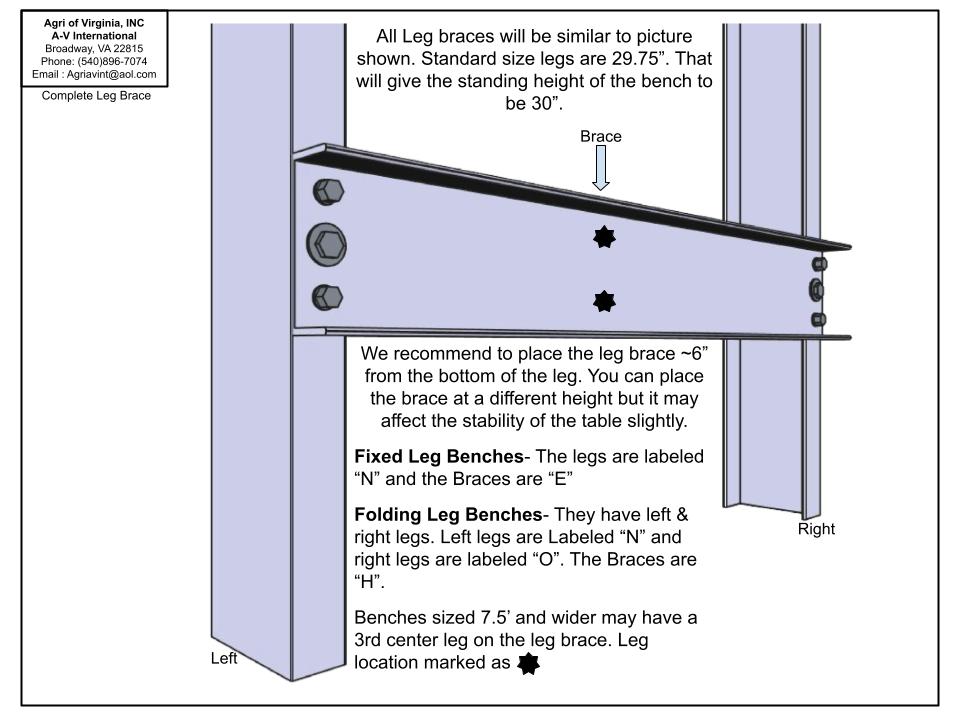

Complete Leg Brace

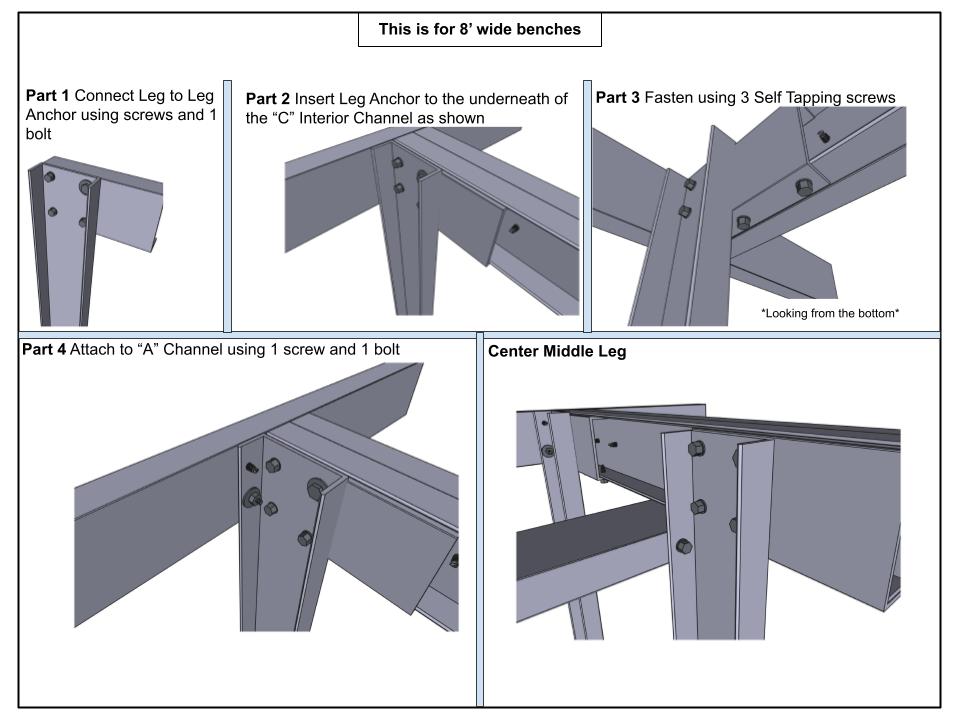

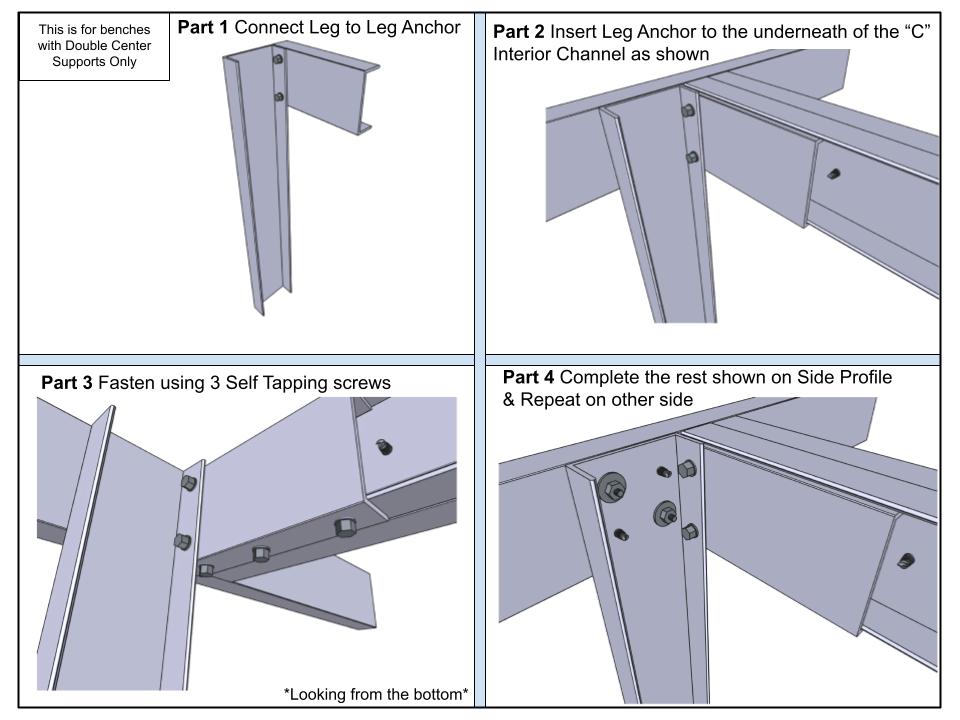

8' Double Center Support Steps

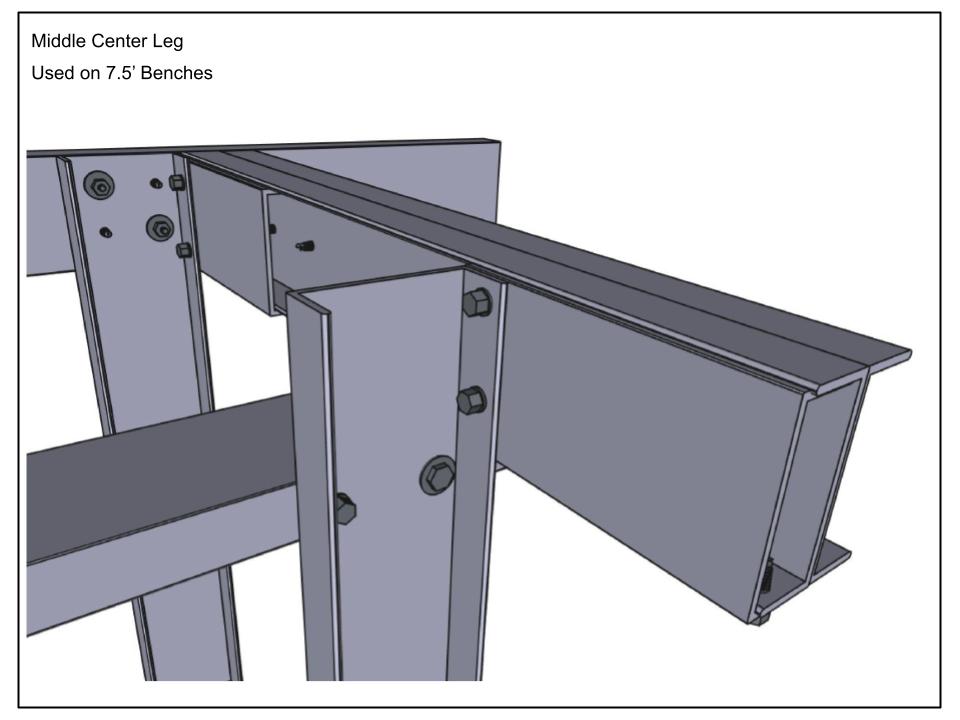

7.5' Middle Center
